The GSR50 is a Bill Recycling Unit that combines highly accurate bill validation with a flexible modular design. Despite its compact footprint, it can be configured to meet a wide range of operational requirements, from a bill acceptance model to a high-capacity recycling model. Its scalable architecture and operational flexibility enable efficient cash handling across a variety of applications.

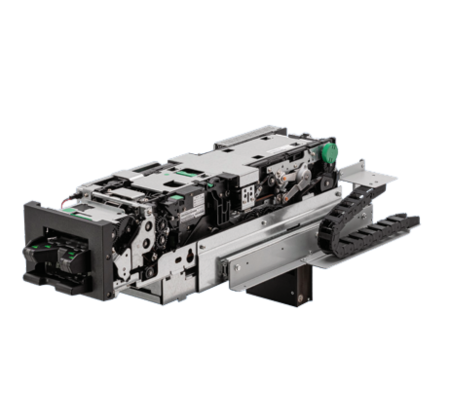

Highly Accurate Bill Validation
The GSR50 is equipped with a high-performance Bill Validator Unit that supports up to 256 denominations. Advanced authentication technology ensures accurate and reliable bill validation across a wide range of operating environments.
An optional serial number recognition function is also available, enabling the reading of bill serial numbers for enhanced traceability.

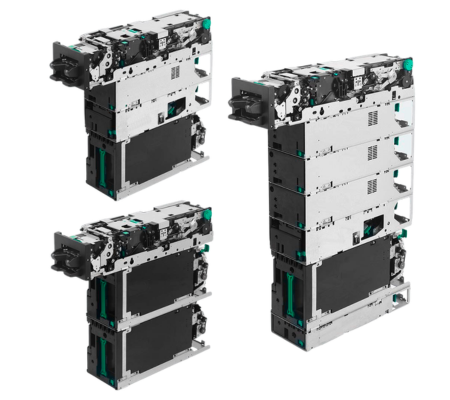

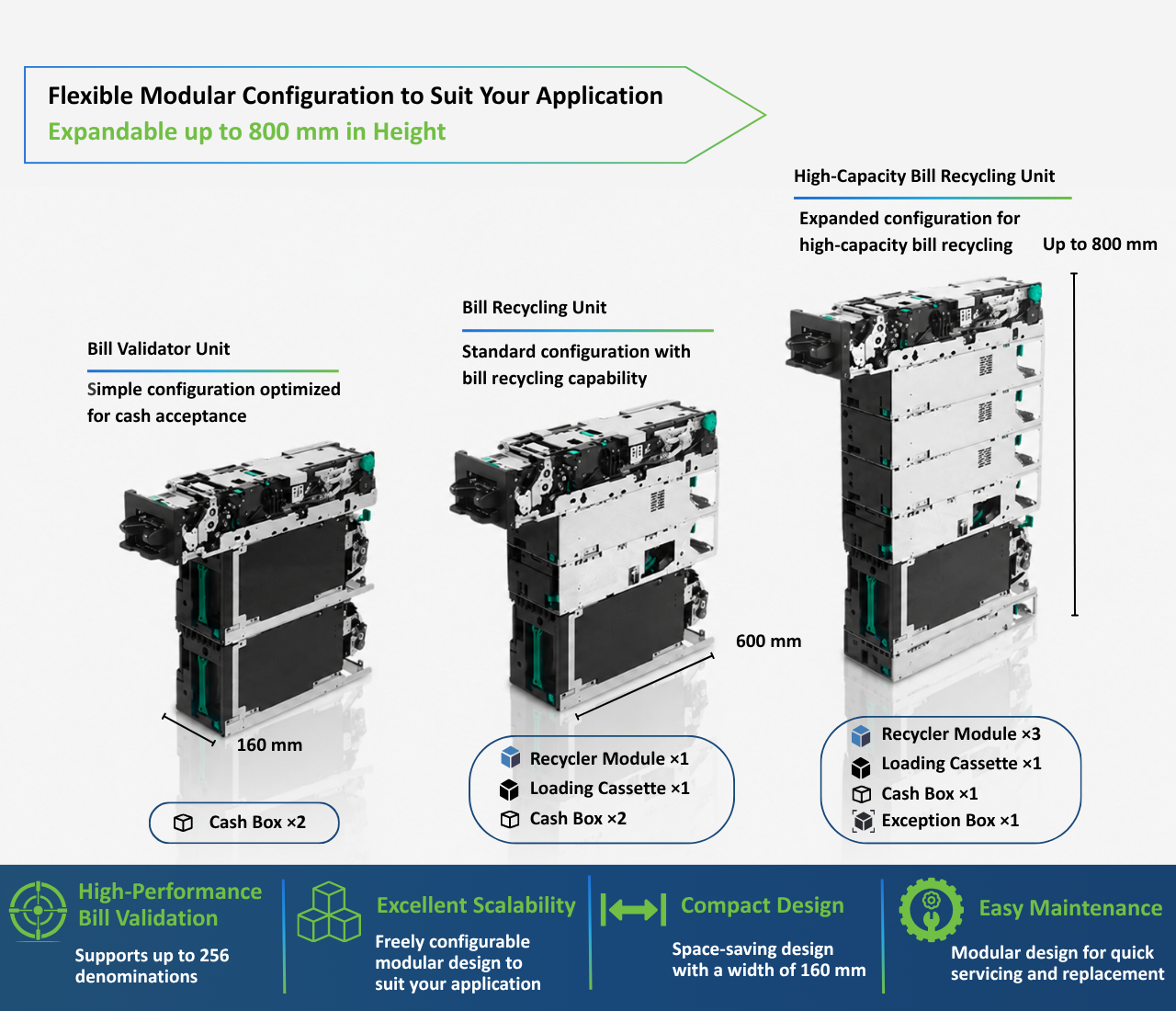

Flexible Modular Configuration for Your Application
The GSR50 offers a flexible modular design, ranging from a deposit-only model to a high-capacity recycling model. Its configurable architecture allows you to build the optimal system to match your application, operational requirements, and capacity needs.
Compact Design

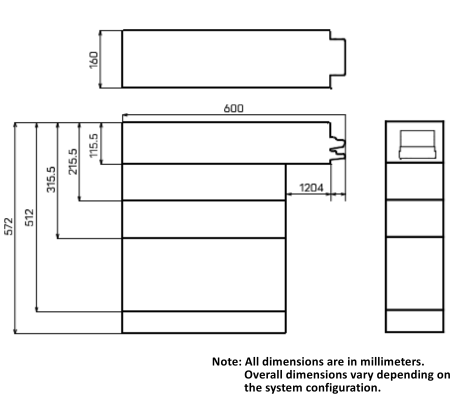

The Bill Validator Unit (deposit-only model) features a compact footprint of 160 mm (W) × 600 mm (D) × 312 mm (H). Additional modules can be stacked vertically to expand functionality while maintaining the same installation footprint of 160 mm × 600 mm, making efficient use of limited installation space.

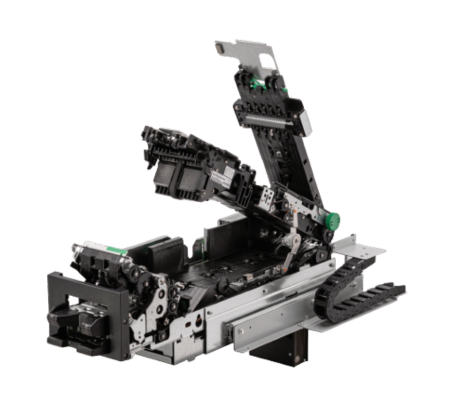

Easy Maintenance
The GSR50 features a modular design with a separate unit structure, simplifying maintenance and improving service efficiency. In the event of a malfunction, only the affected module needs to be replaced, minimizing maintenance time and reducing operational downtime.
|
Name |
Bill Recycling Unit GSR50 |
|
Dimensions |
W 160 / D 600 / H 312-800 mm Note: Height varies depending on the system configuration. |
|
Weight |
Approx. 11.7–32.2 kg Note: Weight varies depending on the system configuration. |
|
Maximum Bulk Deposit Capacity |
10 mm (total thickness of deposited bills) |
|
Maximum Bulk Dispense Capacity |
6 mm (total thickness of dispensed bills) |
|
Transport Speed |
Approx. 3 bills/second |
|
Cash Box Capacity |
Approx. 1,500 bills (Inner area: 225 mm) |
|
Recycler Stacker Capacity |
Dual drum: Approx. 60 bills/drum (120 bills/recycler stacker) |
|
Loading Cassette Capacity |
Approx. 500 bills (Inner area: 60 mm) |
|
Exception Box Capacity |
Approx. 20 bills (Inner area: 40 mm) |
Notes
1. Specifications are subject to change without prior notice.
2. Performance and capacities may vary depending on the size and condition of the media (bills) being processed.
3. System configurations can be customized to meet customer requirements. The maximum configurable unit height is 800 mm.
