Efficient Cash Handling with Bundle Dispensing of Up to 20 Bills

Main applications of the JCM F53 Dispenser Unit, including parking payment machines, foreign currency exchange machines, ticket vending machines, payment machines, and compact ATMs.
Main applications of the JCM F53 Dispenser Unit, including parking payment machines, foreign currency exchange machines, ticket vending machines, payment machines, and compact ATMs.

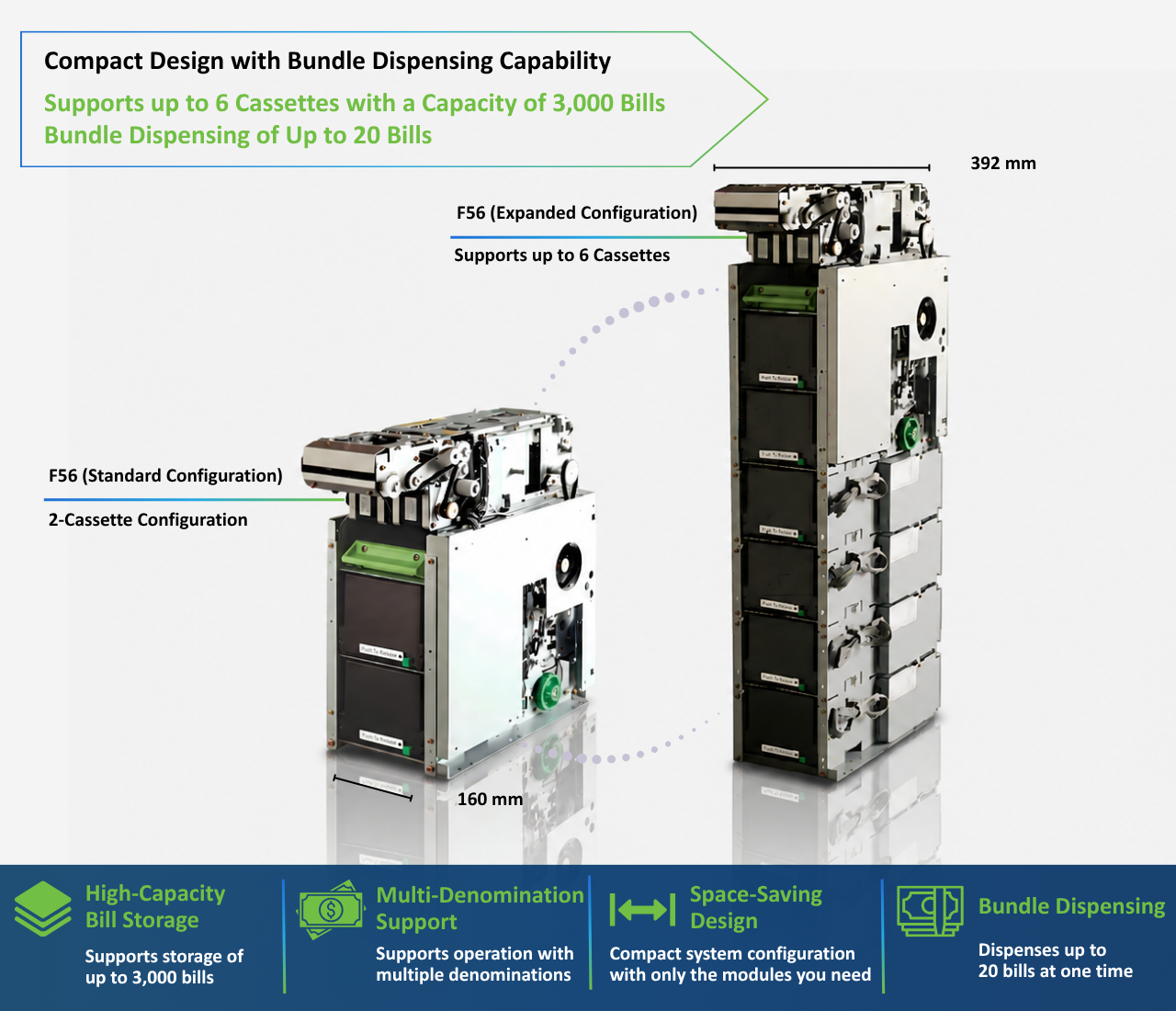

JCM F56 Dispenser Unit with scalable configurations from 2 to 6 cassettes, supporting storage of up to 3,000 bills and bundle dispensing of up to 20 bills in a compact, space-saving design.

Product Overview

The F56 is a compact Dispenser Unit featuring a modular design. Its flexible architecture supports configurations ranging from a standard 2-cassette model to a maximum of 6 cassettes, providing a storage capacity of up to 3,000 bills. Despite its compact footprint, the F56 delivers high storage capacity and enables flexible system configurations to meet diverse operational requirements.



The F56 also features bundle dispensing of up to 20 bills at one time, helping improve the efficiency of cash handling operations. With high reliability, excellent serviceability, and support for a variety of optional features, the F56 is designed to meet a wide range of operational needs.

Features

POINT１

High-Capacity Bill Storage of Up to 3,000 Bills

The F56 features a scalable configuration that can be expanded from a standard 2-cassette model to a maximum of 6 cassettes. Each cassette holds up to 500 bills, providing a total storage capacity of up to 3,000 bills to support high-volume cash dispensing operations.

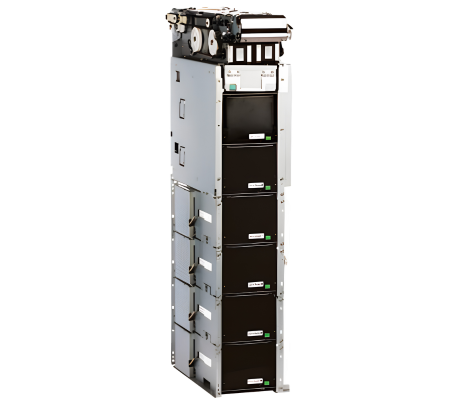

JCM F56 Dispenser Unit with a 6-cassette configuration, providing high-capacity storage of up to 3,000 bills for cash dispensing applications.
POINT2

Flexible Multi-Denomination Support

With support for up to 6 cassettes, the F56 enables flexible operation with multiple bill denominations. Its configurable cassette layout allows denomination combinations to be tailored to operational requirements, making it suitable for a wide range of cash handling applications.

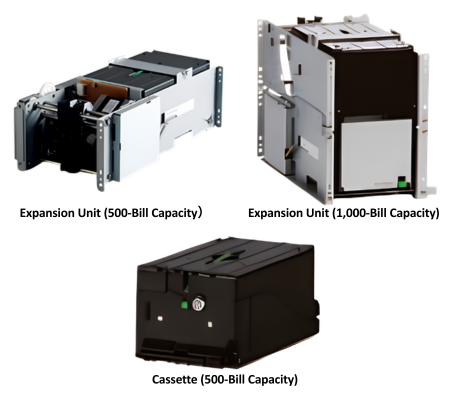

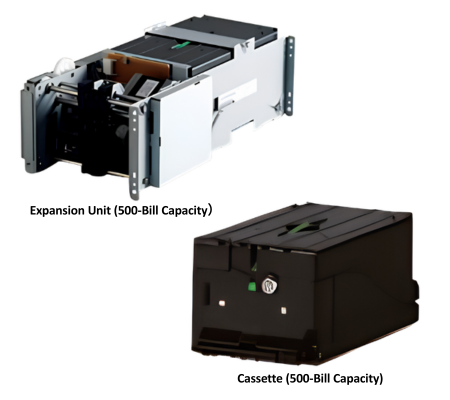

Expansion units and cassette options for the JCM F56 Dispenser Unit, including 500-bill and 1,000-bill expansion units and a 500-bill cassette for flexible storage capacity.
POINT3

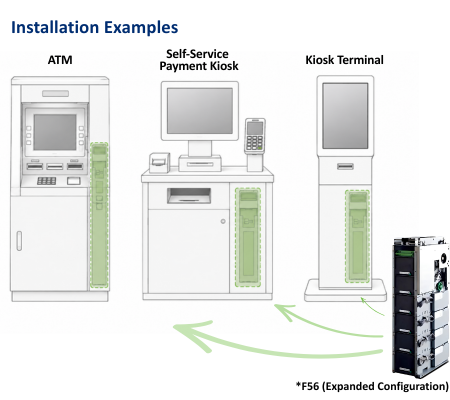

Space-Saving Design with a Minimal System Configuration

The F56 can be configured using only the modules required for your application, making it ideal for installations where space is limited. While maintaining high storage capacity, its modular design enables a compact system and efficient use of available installation space.

Expansion units and cassette options for the JCM F56 Dispenser Unit, including 500-bill and 1,000-bill expansion units and a 500-bill cassette for flexible storage capacity.
POINT4

Smooth Bill Delivery

The F56 can dispense up to 20 bills at one time, enabling smooth and efficient cash transactions. Delivering multiple bills in a single operation enhances transaction efficiency and provides a more convenient user experience.

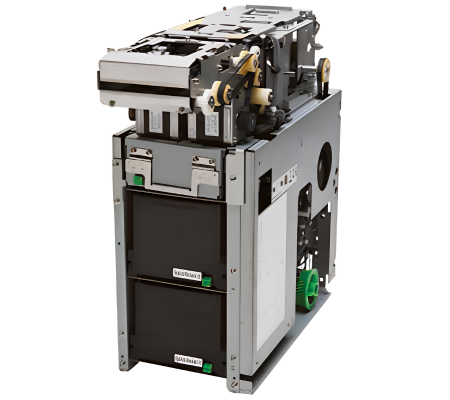

JCM F56 Dispenser Unit with bundle dispensing capability, delivering up to 20 bills at one time for smooth and efficient cash handling.

Optional Features

Cassette Lock Function for the JCM F56 Dispenser Unit, providing enhanced security for the cassette.
Multiple sensors for the JCM F56 Dispenser Unit, including a near-end sensor and a bill thickness sensor for reliable bill handling.
Bill Reject Function for the JCM F56 Dispenser Unit, storing rejected bills in the internal reject compartment.
Bundle Dispensing Function for the JCM F56 Dispenser Unit, dispensing up to 20 bills at one time for faster and more efficient cash handling.
Bill Retract Function for the JCM F56 Dispenser Unit, retracting uncollected bills to allow the next transaction to proceed.
Output Slot Shutter for the JCM F56 Dispenser Unit, enhancing security with a shutter-equipped output slot.

Specifications

Name

Dispenser Unit F56

Dimensions

(2-Cassette Configuration)

W 160 / D 392 / H 375 mm

Weight

Approx. 11 kg (Cassette: Approx. 0.7 kg)

Access Type

Front Access, Rear Access, or Dual (Front/Rear) Access

Number of Cassettes

Standard 2-cassette configuration, expandable up to 6 cassettes

Counting Speed

Approx. 2 bills/sec

Supported Bill Size

Max. 82x160 mm

Min. 60x120 mm

Thickness: 0.09-0.3 mm

Maximum Bills per Transaction

20 bills/transaction

Bill Intake Function

Standard: One-time intake

Optional: Up to 60 bills

Shutter

Optional

Cassette Capacity

(per Cassette)

Approx. 500 bills

Cassette Storage Space: 60 mm

Rejected Bills

Transported to the internal reject compartment

Capacity: Approx. 20 bills

Near-End Detection

Approx. 40 bills

Interface

RS-232C

Power Supply

DC +24V +-10%

Max. 7A

AV. 5A

Temperature

Operating: 0 to 40°C

Packed Storage: –5 to 50°C

Humidity

Operating: 10–85% RH

Packed Storage: 8–90% RH

Notes

1. Specifications are subject to change without prior notice.

2. Performance and capacities may vary depending on the size and condition of the bills being processed.
