Achieves a Slim 360 mm-Wide Design with Single-Denomination Bulk Dispensing

Main Applications:Clinics
Main Applications:Clinics

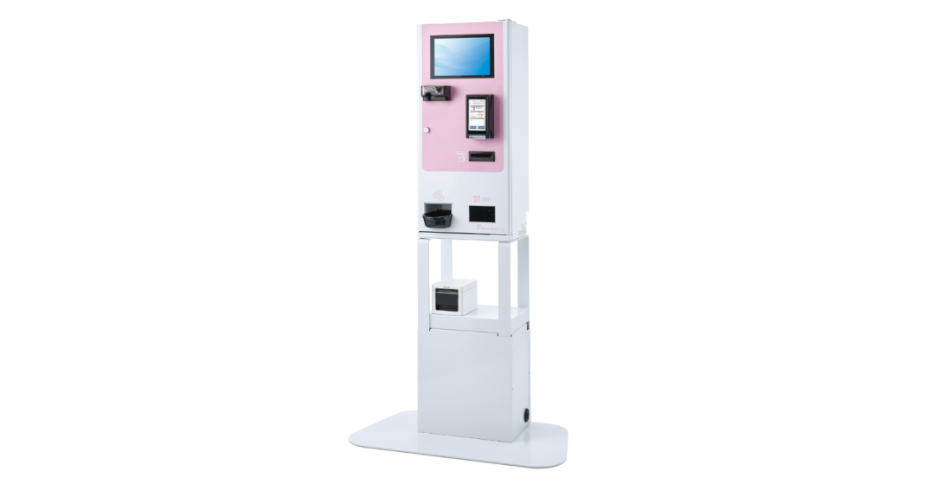

Flexcom Pay payment kiosk with touchscreen and cash/cashless modules
  • One-stop support for both cash and cashless payments
  • Compact and low-cost design for easy installation

Display

10.1-inch color touch panel display

Accepted Denominations

・Coins: 4 Japanese coin denominations (10 / 50 / 100 / 500 yen)

・Banknotes: 4 Japanese banknote denominations (1,000 / 2,000 / 5,000 / 10,000 yen)

Dispense Quantity

・Coins: Bulk dispensing of all 4 denominations

・Single-note dispensing (Change dispensing limited to 1,000-yen banknotes)

Storage Capacity

・10 yen: Approx. 92 coins

・50 yen: Approx. 82 coins

・100 yen: Approx. 77 coins

・500 yen: Approx. 70 coins

・Recycling unit (1,000 yen): Approx. 30 notes

・Cash box: Approx. 300 mixed coins (4 denominations)

Credit Card Payments (Optional)

VISA, Mastercard, JCB, AMERICAN EXPRESS, Diners Club, DISCOVER, UnionPay

Prepaid IC Card (Optional)

Kitaca, Suica, PASMO, TOICA, manaca, ICOCA, SUGOCA, nimoca, Hayakaken

QR Code Payments (Optional)

d payment, PayPay, LINE Pay, Merpay, Alipay, Wechat pay,Kakao Pay, JKOPAY, VIA, bartong, DANA

Printer (Optional)

80 mm thermal printer

Automated Payment Kiosk Integrated with Medical Accounting Systems

Flexcom Pay links with the clinic’s medical accounting system to display billing information on the screen, allowing patients to complete their payments  independently. This solution enables non-face-to-face payment for infection control, promotes self-service accounting, and helps reduce patient waiting times.

One-Stop Support for Cash and Cashless Payments

Flexcom Pay supports a full range of payment methods, including cash, credit cards, QR code payments, and prepaid IC cards, all through a single kiosk. This enhances convenience for patients and streamlines the overall payment experience.

Compact and Low-Cost Design

Flexcom Pay features an exceptionally compact design, 360 mm wide, 250 mm deep, and 1,525 mm high. By limiting certain cash-handling functions, the overall device cost and footprint are significantly reduced. This makes the unit easy to install even in clinics where space constraints or budget limitations previously prevented the adoption of payment kiosks.

Flexcom Pay Dedicated Website (Japanese Only)

The dedicated Flexcom Pay website (available in Japanese only) is accessible at the link below:

https://flexcompay.jcm-hq.co.jp



You can view detailed product information and submit various inquiries through this website.

Specifications

Name

Cash / Cashless Payment Kiosk Flexcom Pay

Dimensions in mm

W360 × D250 × H1525（excluding projections）

Weight

Approx. 40 kg

Power Supply

AC100V

Interface

Ethernet LAN
