Combining a Compact Footprint with High-Capacity Performance

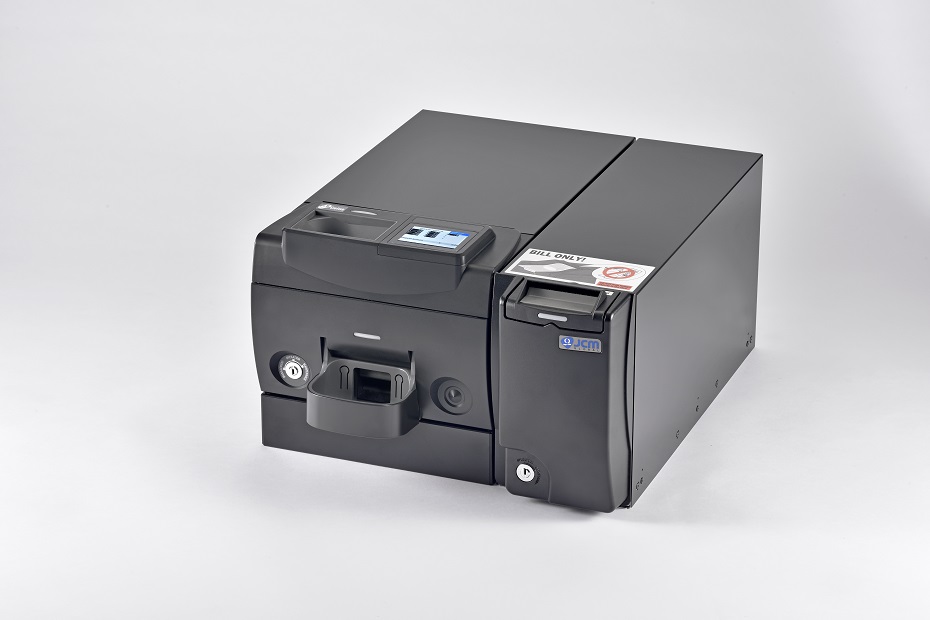

Retail Cash Recycler RCR unit

●Minimize Cash Processing Time

- Easy, touchless cash handling

- Compatible with self-checkout systems

●Eliminate Cash Handling Errors

- Effortless, precise cash counting

- Automatically dispenses change

●Space Saving Design, Easy Setup

- Compact form factor

- Easily integrates into existing store layouts

●Advanced Security

Security features protect cash and prevent unauthorized access

General Specifications

RCR-B (Bill Unit)

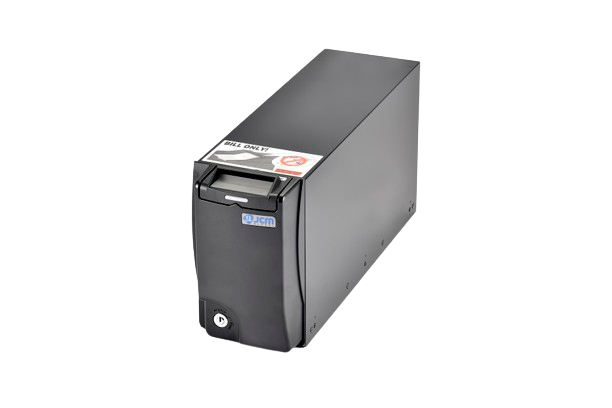

Retail Cash Recycler RCR-B (bill) unit

Increase reliability with drum-based recycling technology —the RCR-B provides smooth and secure cash handling. This 4-denomination banknote recycler is designed to meet diverse operational requirements.

Acceptance Capacity

Single-note insertion

Acceptance Speed

Approx. 1 note per 3 seconds

Dispense Speed

Approx. 1 note per 3 seconds

Accepted Denominations

Up to 4 denominations

Recycling Capacity

Approx. 30 notes per recycler

Cash Box Capacity

Approx. 400 notes

Dimensions

W170 × D530 × H270 mm

*Protruding parts not included

RCR-C (Coin Unit)

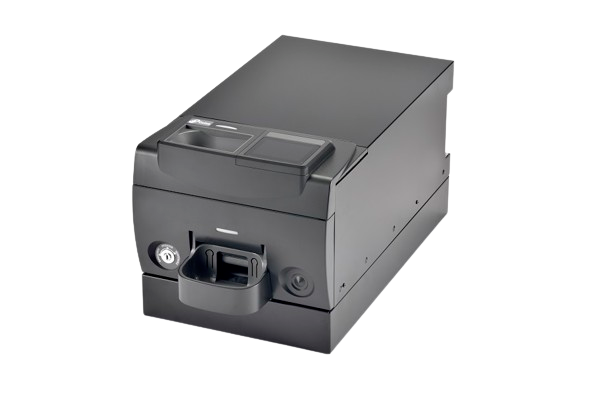

Retail Cash Recycler RCR-C (coin) unit

Experience outstanding durability with an 8-denomination hopper, delivering high-speed coin acceptance and dispensing performance.

Input Tray Capacity

Up to 50 coins at a time

Acceptance Speed

Approx. 2 coins per second

Dispense Speed

Approx. 3 coins per second

Accepted Denominations

Up to 8 denominations

Hopper Capacity

Approx. 120 to 650 coins per hopper

Dispense Quantity

Up to 50 coins

Dimensions

W300 × D530 × H270

*Protruding parts not included

Configurations and Components

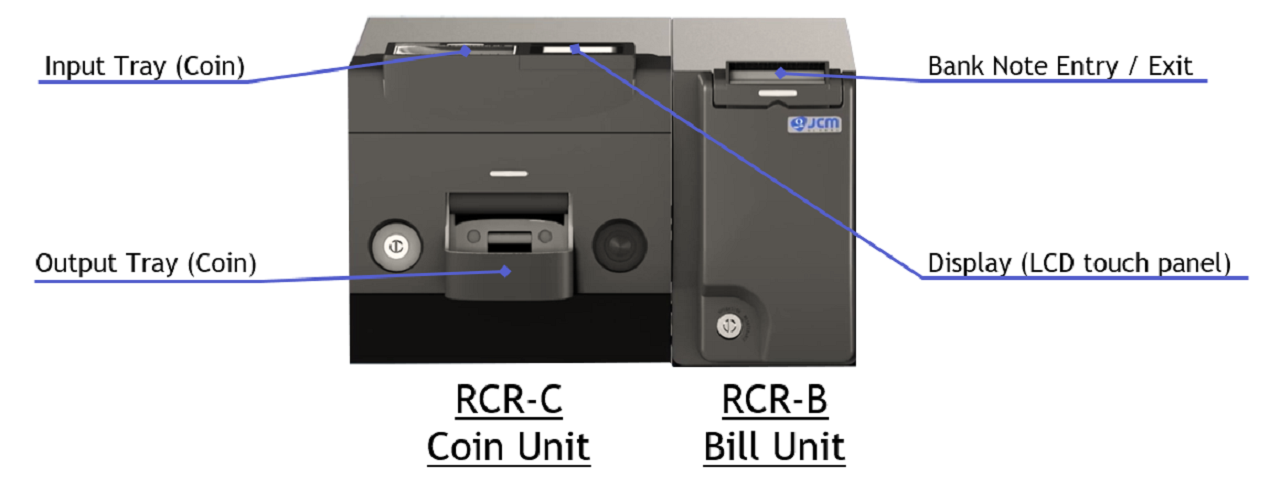

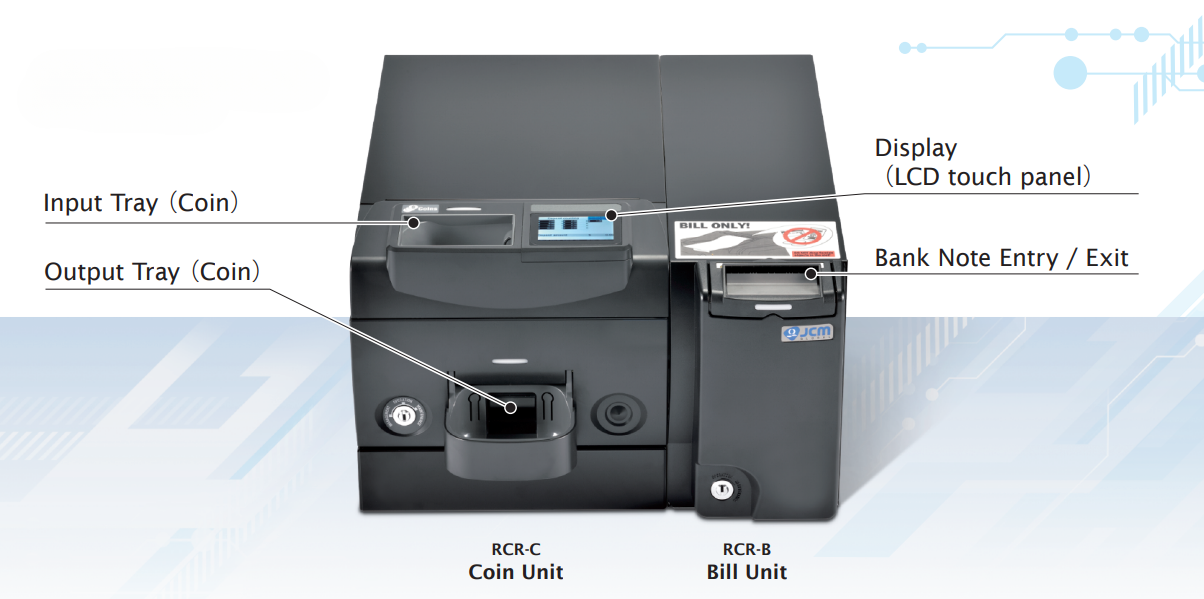

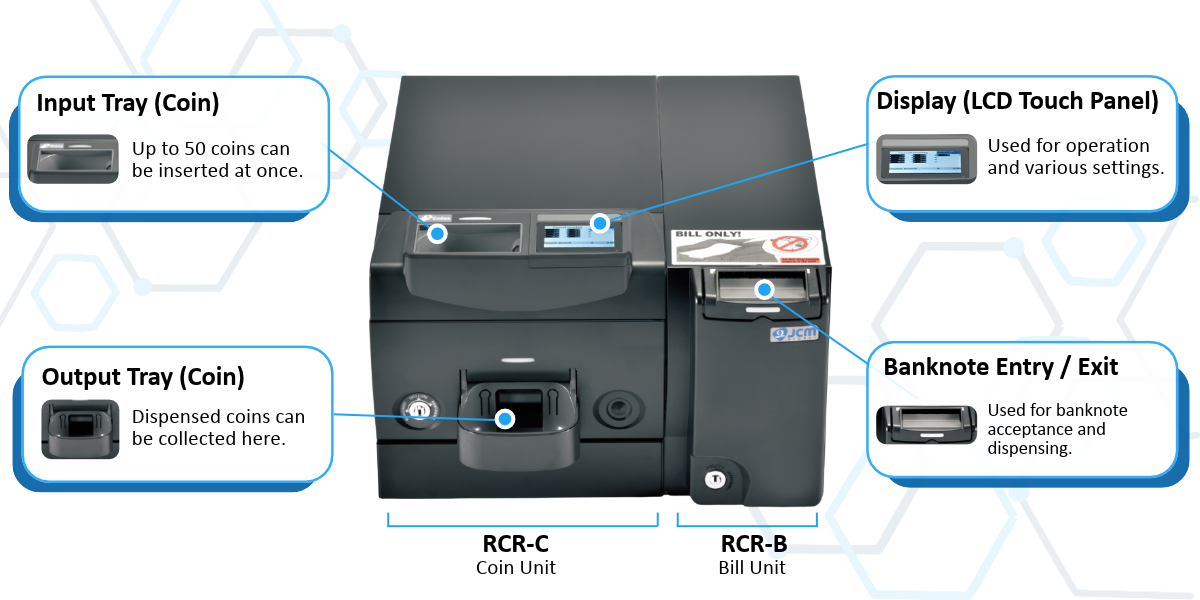

Configuration diagram of the Retail Cash Recycler RCR, showing RCR-C Coin Unit and RCR-B Bill Unit with labeled input/output trays, bank note entry, and LCD touch panel

Typical Applications

Coffee Shop
Gas Station
Hotel
Bakery Shop
Super Market
Pharmacy

RCR Products Movie

Video introduction of the Retail Cash Recycler RCR
