Supported Banknote Size |
W: 60 – 85mm, L: 110 - 170mm |
|
Acceptance Capacity |
Single-note insertion *Optional BNF unit supports bulk insertion of up to 30 notes |
|
Acceptance Speed |
Approx. 2 notes per second (based on USD banknotes) |
|
Storage Capacity |
Escrow: 15 notes *Approx. 30 notes with the optional BNF unit installed Recycling modules: Two drums, 60-note capacity each *Up to 4 recycling modules can be installed Retracted Banknote Box: Up to 30 notes Loading/Dispensing Module: Approx. 350 notes Cash Box: Approx. 2,200 notes |
|
Dispense Capacity |
Bulk dispensing of 15 notes (Optional BNF unit supports bulk dispensing of up to 30 notes) |
|
Dispense Speed |
Approx. 2 notes per second (based on USD banknotes) |

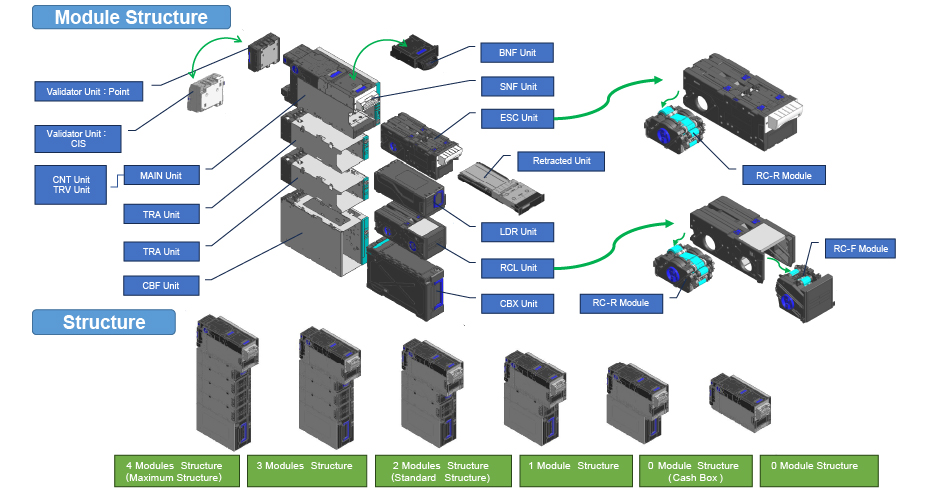

The recycling modules in this unit use a drum-based mechanism, with each drum capable of storing approximately 60 notes. Each recycling module is equipped with two drums, and up to 4 recycling modules can be installed, allowing the system to support recycling of up to eight denominations.
A variety of optional components are available, including recycling modules, the BNF unit for bulk acceptance and loading/dispensing modules. By combining these options, MRX can be configured to meet a wide range of operational requirements.
*Up to 32 configuration patterns are supported.
|
Name |
Modular Banknote Recycler MRX |
|
Dimensions |
W165 × D480 × H912（excluding protruding parts） |
|
Weight |
Approx. 47 kg |
|
Supply Voltage |
DC24V |
|
Interfaces |
USB/RS232C |
*The above specifications refer to a configuration consisting of the main unit, three recycling modules, a loading/dispensing module, and a cash box.
