Coin Recycler with Dual-Side Deposit and Dispense Access, Compatible with Optional Automatic Counting & Refilling

Main Applications: Payment Kiosks at Gas Stations
Main Applications: Payment Kiosks at Gas Stations

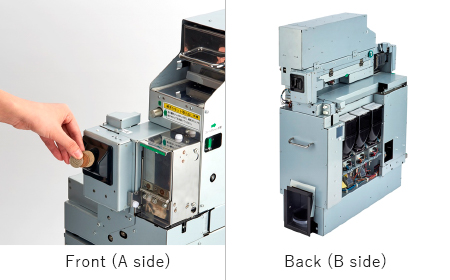

CRU-06D coin recycler featuring front and rear access for coin deposit and dispense, with visible sorting and storage mechanisms

Accepted Denominations

Japanese coin 6 denominations

(1 yen/ 5 yen/ 10 yen/ 50 yen/ 100 yen/ 500 yen)

Acceptance Capacity

Up to 3 coins

Acceptance Speed

Approx. 5 coins per second

Storage Capacity

・1 yen, 10 yen, 50 yen, 100 yen: Approx. 500 coins each

・500 yen: Approx. 300 coins

Dispense Capacity

Bulk dispensing of 50 coins

Dispense Speed

Approx. 999 yen in 4 seconds (minimum coin configuration)

Dual-Side Coin Handling Unit

User depositing coins from the front side of the CRU-06D coin recycler

Coins can be deposited and dispensed from both the front side (A-side) and the rear side (B-side) of the unit.
This allows a single device to support two independent operational lines.

Optional Coin Refilling Unit

Hand operating the optional coin refilling unit on top of the CRU-06D coin recycler

By installing the optional coin refilling unit on the top of the device, the CRU-06D supports automatic coin refilling.

Specifications

Name

Dual-Side Access Coin Recycler CRU-06D

Dimensions

・Without Refilling Unit: W250 × D670 × H667 (excluding projections)

・With Refilling Unit: W250 × D670 × H810 (excluding projections)

Weight

・Without Refilling Unit: Approx. 38 kg

・With Refilling Unit: Approx. 48 kg

Power Supply

DC24V

Interfaces

RS232-C
