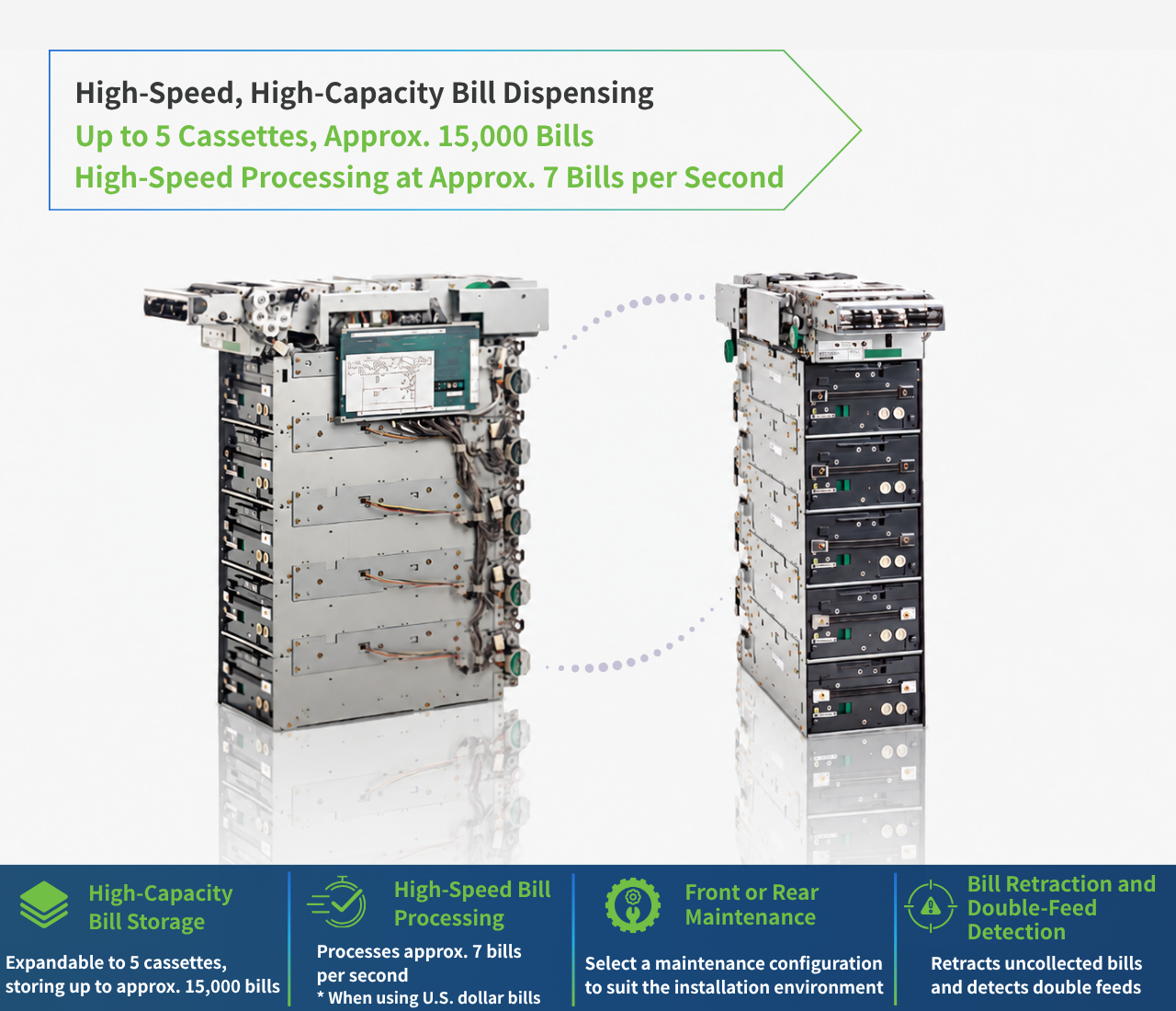

The F510 is a Dispenser Unit offering high storage capacity and high-speed bill processing. It can be expanded to a maximum of 5 cassettes, each holding up to approximately 3,000 bills, for a total storage capacity of up to approximately 15,000 bills. With a processing speed of approximately 7 bills per second using U.S. dollar bills, along with uncollected bill retraction and double-feed detection functions, the F510 supports reliable operation in high-demand environments.

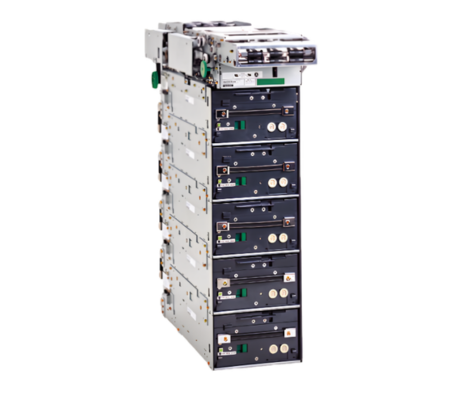

High-Capacity Bill Storage of Up to Approximately 15,000 Bills
The F510 can be expanded to a maximum of 5 cassettes. Each cassette holds up to approximately 3,000 bills, providing a total storage capacity of up to approximately 15,000 bills to support high-volume cash dispensing operations.

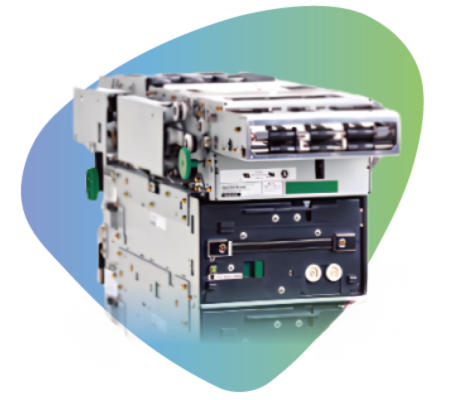

High-Speed Bill Processing at Approximately 7 Bills per Second
The F510 processes approximately 7 bills per second using U.S. dollar bills, supporting efficient cash dispensing in environments that handle large volumes of bills.

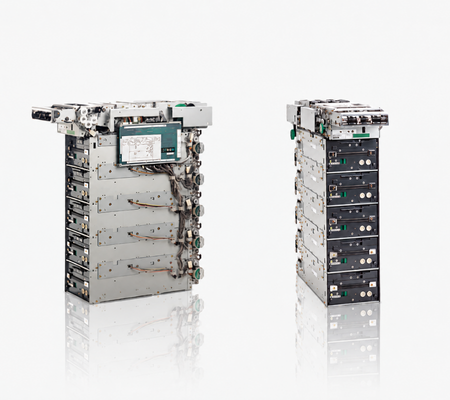

Selectable Maintenance Access to Suit the Installation Environment
The F510 supports front-access or rear-access configurations. Users can select the most suitable configuration based on equipment integration requirements and the space available for maintenance.

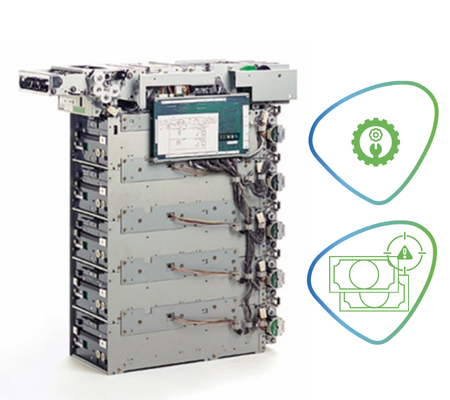

Features Supporting Reliable Operation
The F510 features uncollected bill retraction and double-feed detection functions. The reject area within the cassette helps reduce maintenance frequency and supports reliable operation.
|
Name |
Dispenser Unit F510 |
|
Dimensions (5-Cassette Configuration) |
Front Access: W 277 × D 752 × H 810 mm Rear Access: W 277 × D 757 × H 810 mm |
|
Weight |
Approx. 72 kg (Maximum configuration, excluding bill weight) |
|
Cassette Removal Direction |
Front Access or Rear Access |
|
Number of Cassettes |
Up to 5 cassettes |
|
Counting Speed |
Approx. 7 bills/second (When using U.S. dollar bills) |
|
Supported Bill Size |
Max. 82x172 mm Min. 60x120 mm Thickness: 0.07-0.18 mm |
|
Maximum Bills per Transaction |
60 bills |
|
Bill Intake Function |
Available/ Bunch dispensing |
|
Shutter |
Optional |
|
Cassette Capacity (per Cassette) |
Approx. 3,000 bills, Storage space: 370 mm |
|
Reject Area |
Located within the uppermost cassette |
|
Rejected Bill Capacity |
Approx. 150 bills |
|
Near-End Detection |
Adjustable (Factory setting: Approx. 100 bills) |
|
Interface |
RS-232C |
|
Power Supply |
DC +24V +-10% Max. 10A Ave. 4A |
|
Temperature |
Operating: 0 to 40°C Packed Storage: −5 to 50°C |
|
Humidity |
Operating: 10–85% RH Packed Storage: 8–95% RH |
Notes
1. Specifications are subject to change without prior notice.
2. Performance and capacities may vary depending on the size and condition of the bills being processed.
3. Compatibility with bills containing polymer must be confirmed in advance.
