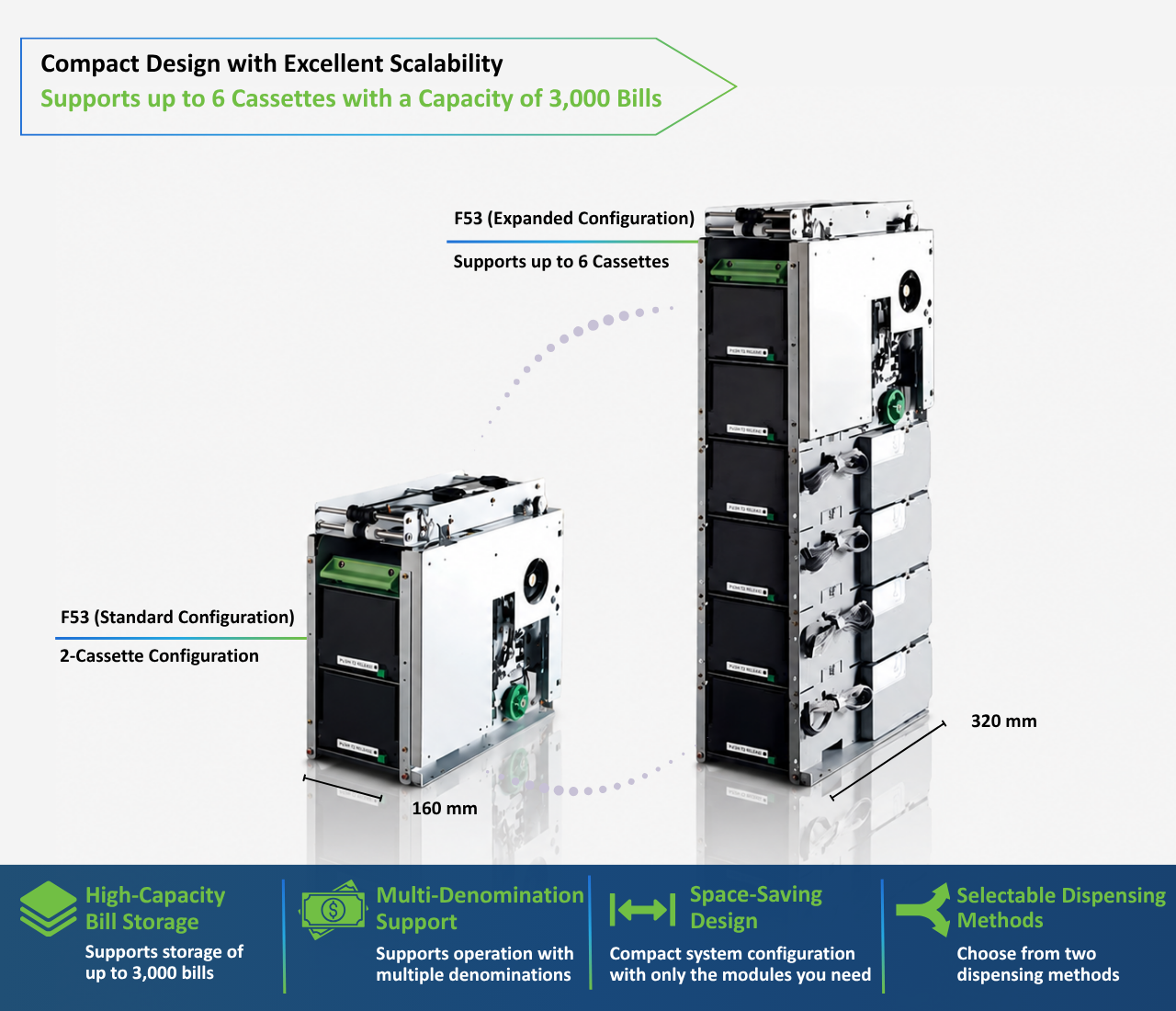

The F53 is a compact Dispenser Unit featuring a modular design. Its flexible architecture supports configurations ranging from a standard 2-cassette model to a maximum of 6 cassettes, providing a storage capacity of up to 3,000 bills. Despite its compact footprint, the F53 delivers high storage capacity and enables flexible system configurations to meet diverse operational requirements. With high reliability and excellent serviceability, it is designed to support a wide range of cash handling applications.

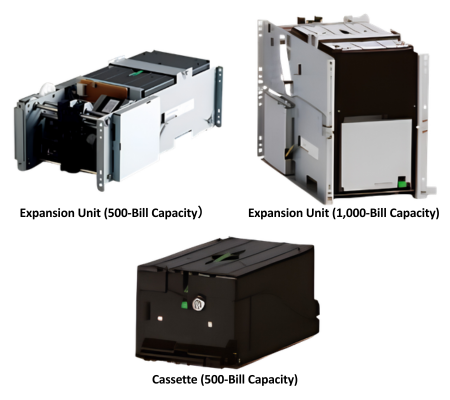

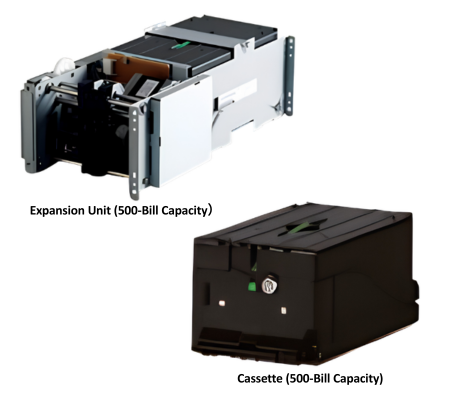

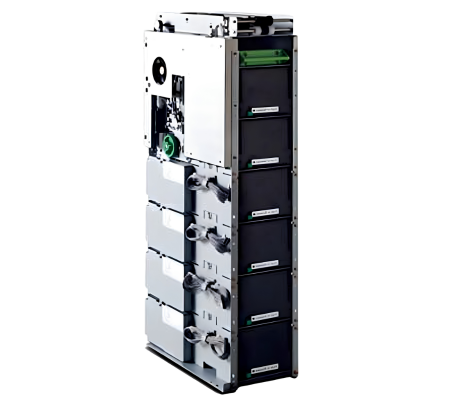

High-Capacity Bill Storage of Up to 3,000 Bills
The F53 features a scalable configuration that can be expanded from a standard 2-cassette model to a maximum of 6 cassettes. Each cassette holds up to 500 bills, providing a total storage capacity of up to 3,000 bills to support high-volume cash dispensing operations.
Flexible Multi-Denomination Support
With support for up to 6 cassettes, the F53 enables flexible operation with multiple bill denominations. Its configurable cassette layout allows denomination combinations to be tailored to operational requirements, making it suitable for a wide range of cash handling applications.

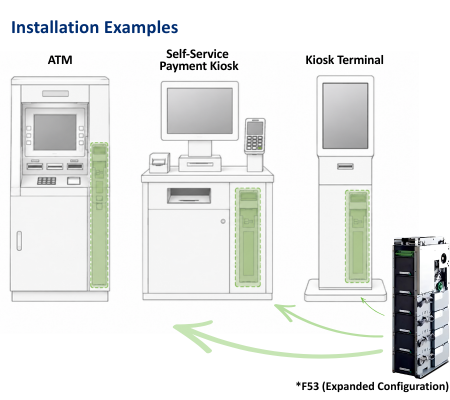

Space-Saving Design with a Minimal System Configuration
The F53 can be configured using only the modules required for your application, making it ideal for installations where space is limited. While maintaining high storage capacity, its modular design enables a compact system and efficient use of available installation space.

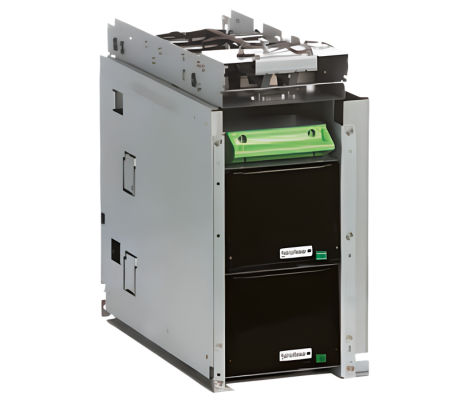

Selectable Dispensing Methods
The F53 offers two dispensing methods: the Semi-Bunch Type and the Spray Type. Users can select the most suitable dispensing method based on the operating environment and equipment requirements, providing greater flexibility in system design and integration.
|
Name |
Dispenser Unit F53 |
|
Dimensions (2-Cassette Configuration) |
W 160 / D 320 / H 313 mm |
|
Weight |
Approx. 8.5 kg (Cassette: Approx. 0.7 kg) |
|
Access Type |
Front Access or Rear Access |
|
Number of Cassettes |
Standard: 2 cassettes / Expandable up to 6 cassettes |
|
Counting Speed |
Approx. 2 bills/second |
|
Supported Bill Size |
Max. 82x165 mm Min. 60x120 mm Thickness: 0.09-0.3 mm |
|
Maximum Bills per Transaction |
Up to 20 bills |
|
Bill Intake Function |
Not available |
|
Shutter |
Not available |
|
Cassette Capacity (per Cassette) |
Approx. 500 bills, Storage space: 60 mm |
|
Rejected Bills |
Transported to the internal reject compartment, Capacity: Approx. 20 bills |
|
Near-End Detection |
Approx. 40 bills |
|
Interface |
RS-232C |
|
Power Supply |
DC +24V +-10% Max. 7A Ave. 5A |
|
Temperature |
Operating: 0 to 40°C Packed Storage: −5 to 50°C |
|
Humidity |
Operating: 10–85% RH Packed Storage: 8–90% RH |
Notes
1. Specifications are subject to change without prior notice.
2. Performance and capacities may vary depending on the size and condition of the bills being processed.
